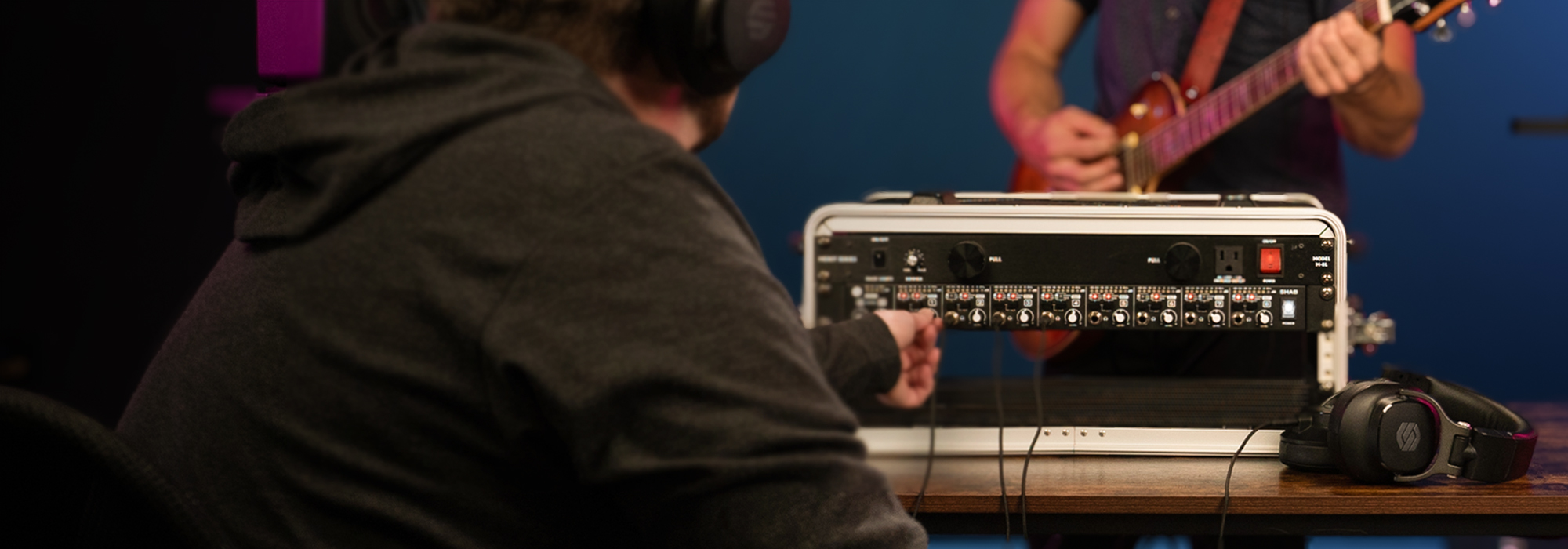

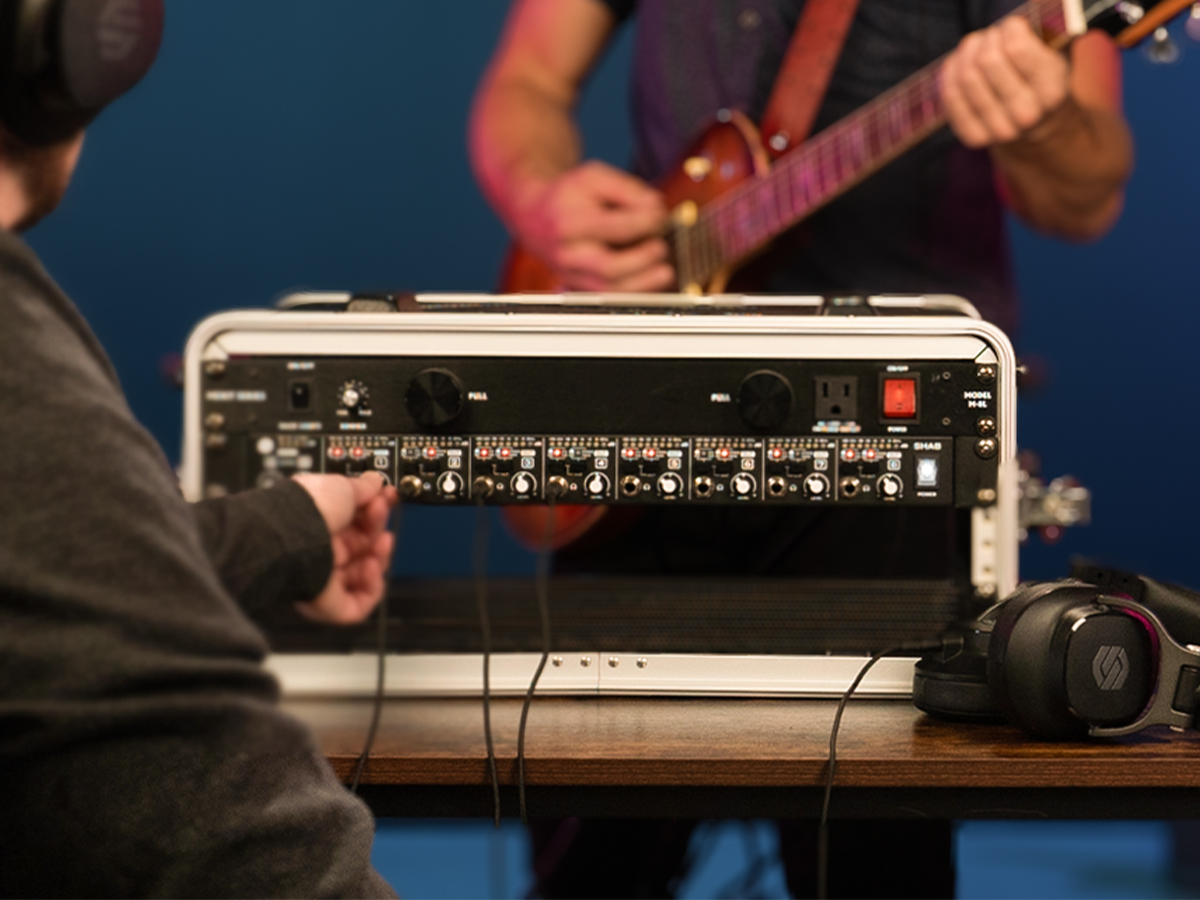

For the advanced home and pro recordist, the Sterling SHA8 8-Channel Rackmount Professional Headphone Amplifier is a robust, table-top and rack-ready solution to meet your most demanding headphone audio-distribution needs.
The SHA8 provides eight (8) clean, amplified channels of dual-source audio inputs that create multiple discrete headphone mixes for individual monitoring preferences at a push of a button.
Providing true flexibility, the SHA8 also allows the individual user to monitor audio levels in stereo and mono configurations, as well as offering discrete and direct input connectors on all eight (8) channels for the ultimate customization for any audio monitoring setup.
• 8 Channels — with 16 total headphone outputs (2 per channel)
• Individual switchable input monitoring
• Stereo ¼” TRS output connectors on the front and rear panels
• Dedicated metering on source inputs and all headphone channel outputs
• Direct inputs on all 8 channels for discrete individual assignment
• Table-top or rack-mountable (with included rack-ears)
• Robust all metal housing for years of reliable service
• Integrated internal power supply eliminates obstructive wall-worts
For the advanced home and pro recordist, the Sterling SHA8 8-Channel Rackmount Professional Headphone Amplifier is a robust, table-top and rack-ready solution to meet your most demanding headphone audio-distribution needs.
The SHA8 provides eight (8) clean, amplified channels of dual-source audio inputs that create multiple discrete headphone mixes for individual monitoring preferences at a push of a button.
Providing true flexibility, the SHA8 also allows the individual user to monitor audio levels in stereo and mono configurations, as well as offering discrete and direct input connectors on all eight (8) channels for the ultimate customization for any audio monitoring setup.
• 8 Channels — with 16 total headphone outputs (2 per channel)
• Individual switchable input monitoring
• Stereo ¼” TRS output connectors on the front and rear panels
• Dedicated metering on source inputs and all headphone channel outputs
• Direct inputs on all 8 channels for discrete individual assignment
• Table-top or rack-mountable (with included rack-ears)
• Robust all metal housing for years of reliable service
• Integrated internal power supply eliminates obstructive wall-worts
Max Input Level: +8dBV
Front Input: Stereo 1/4″ TRS (unbalanced)
Rear Input: Stereo 1/4″ L/R (balanced)
Outputs: 4 channels, 1/4″ TRS
Input Impedance: 10 K Ohms (unbalanced), 20 K Ohms (balanced)
Output Impedance: 6 Ohms
Max. Level: 19dB/channels
S/N Ratio: >90dB
THD: <0.005% @1V/1KHZ
Power Supply: DC 17V 800mA, center pin positive
Dimensions: 6.75″ x 5.5″ x 2.5″
Weight: 3.30 lbs.
Max Input Level: +8dBV
Front Input: Stereo 1/4″ TRS (unbalanced)
Rear Input: Stereo 1/4″ L/R (balanced)
Outputs: 4 channels, 1/4″ TRS
Input Impedance: 10 K Ohms (unbalanced), 20 K Ohms (balanced)
Output Impedance: 6 Ohms
Max. Level: 19dB/channels
S/N Ratio: >90dB
THD: <0.005% @1V/1KHZ
Power Supply: DC 17V 800mA, center pin positive
Dimensions: 6.75″ x 5.5″ x 2.5″
Weight: 3.30 lbs.
